Introducing Arc 3-d™

Architectural Direct Drive Door System™

Experience the dramatic differences

DoorWall Systems with Arc 3-D™ allows you to convert spaces, connect worlds, and design without limits.

Zero sidewalk projection.
Custom manufacturing and engineering.
Integrated high-security applications.
Matching wall cladding and glazing.
Compliance with UL 325 and NEMA requirements.

HELICAL GEAR Motor

The Arc 3-D™ 3 HP, 3 phase, low-profile motor with safety brake system, mounted seamlessly in header area.
COMPARE: 1 horse power, single phase motors that mount visible on finished wall at header with no safety brake mechanism and require belts to operate.
BENEFIT: More powerful motors have increased longevity, and improved capabilities in size, cladding, and other design elements.

screw drive & Lift Block

Arc 3-D™: DWS uses a Ball Nut-embedded Block system featuring a Steel Screw Drive and Nut System made of common alloy steel. These components are designed to work together and are sourced from a singlemanufacturing partner for better performance, no maintenance and longer life.
COMPARE: Corresponding screw drive thread pattern that installs into their aluminum lift block (not using a nut).
BENEFIT: The Arc 3-D™ compatible Steel Screw Drive and Nut System produces a true "Load-Lock" safety function. Other doors use a Steel Screw with incompatible Threaded Aluminum which will strip and potentially break when the Steel Screw Drive drops a heavy load on the lighter-weight, incompatible, threaded aluminum block.

Manufacturing

Interior or exterior mounting.
Ease of installation via pre-assembly of operational components in the factory.
Modularized for easy install on site.

GearBOXes

Arc 3-D™: Drive shaft connects with gear boxes to rotate the Screw Drives.
COMPARE: Drive belts, spread across the installation that can move and snap.
BENEFIT: More reliable components eliminate variables and produce safer, longer lasting systems.

Components

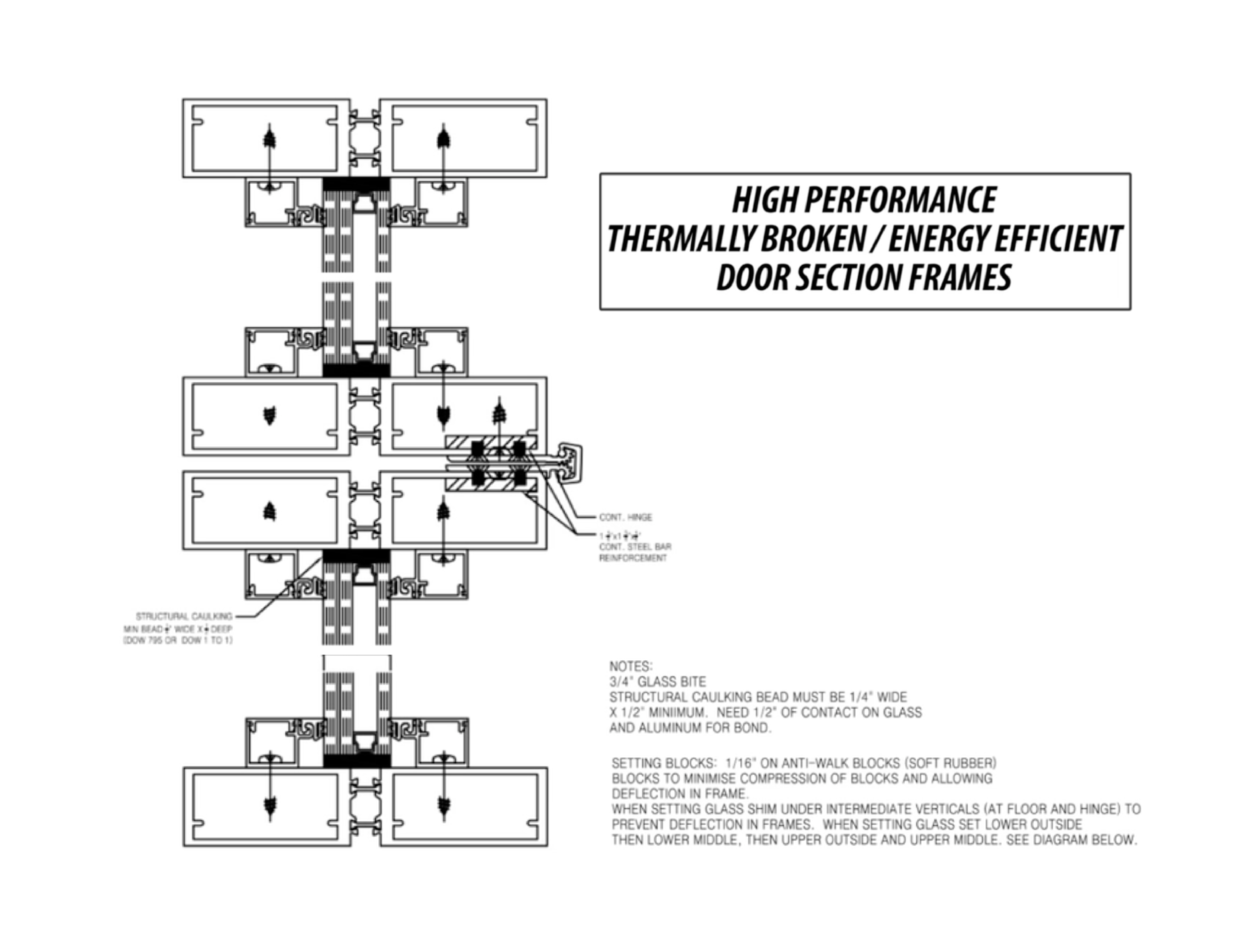

DWS Engineers pay exceptional attention to design details with proven innovative components in order to build better vertically operating doors and walls. There are a combination of factors that allow us to accomplish such excellence including: better drive systems, superior motors and control panels, high performance energy efficient door section frames, proven safety devices and high quality components that you will not find in other brands. From product design, materials and DWS engineers to DWS factory environments, workflow and tools... on to customer support and superb distributor training, these are all elements that come together to provide a DoorWall that is unequalled in elegant form and exquisite function, with an ownership experience.

Motors

We test our designs extensively through hundreds of thousands of continuous cycles. DWS Engineers design and engineer all the details of our products to perform superbly, even in harsh conditions, so you have the confidence to connect worlds and design without limits safely, comfortably, and worry-free.

Motors and control panels are simply one example of the many significant differentiating details that are part of the DoorWall Systems DNA. While small, off the shelf motors might work well for hobby shops and light duty residential applications, we believe the demand for industrial grade horsepower to effortlessly move architectural grade glass and high performance facade building materials is a necessity.

Safety

We believe that safety is not simply a benefit, it’s a mindset. DoorWall Systems are safer by design, which is proven by the built-in safety features in every installation.

250,000+ continuously cycled tested.
Motor equipped with safety brake system.
Integrated Load-Lock fall protection designed to lock and catch door instantly.
